Y type filter

Y type filter

     Y type filter

     The Y-type filter belongs to the pipeline coarse filter, and can be used for filtering the big particle liquid, gas or other medium. It can be installed in pipelines to remove larger solids from fluids and make equipment include compressors, pumps, and instrumentation. When the filter is blocked by impurities, just remove the removable filter element, after treatment can be re-loaded, use and maintenance are very convenient.


Used to eliminate impurities in the medium to protect the normal use of valves and equipment.


This filter has the characteristics of advanced structure, low resistance, and convenient discharge. The general water valve is 10-30 mesh, and the ventilation net is 40-100 mesh. The oil net is 100-480 mesh, and the filter can be manufactured according to user requirements.

      Nominal pressure0.6~4.0MPa               Nominal diameterDN50~DN1400

     Applicable mediumWater,air                Applicable teperature:≤80

     MaterialDuctile iron,Cast Steel,SS304         Transmission modeNone

 product series

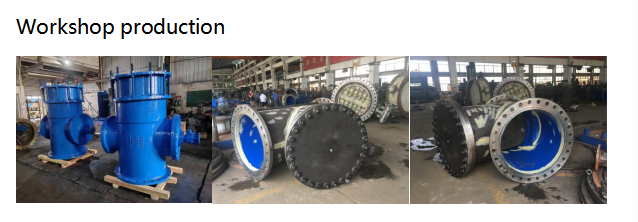

workship production
