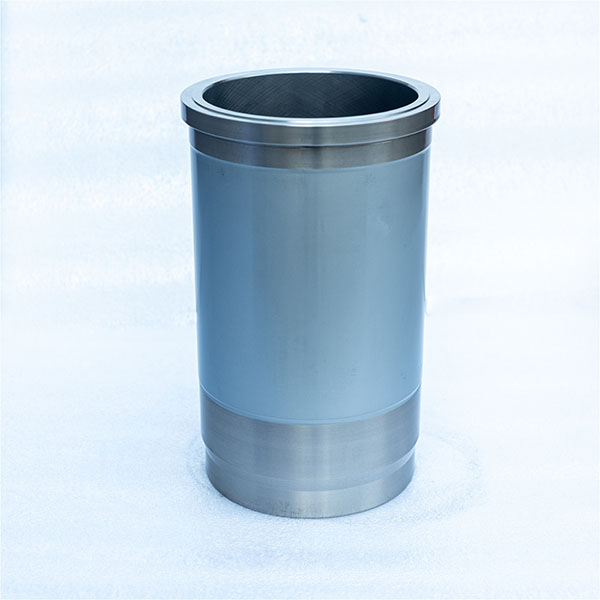

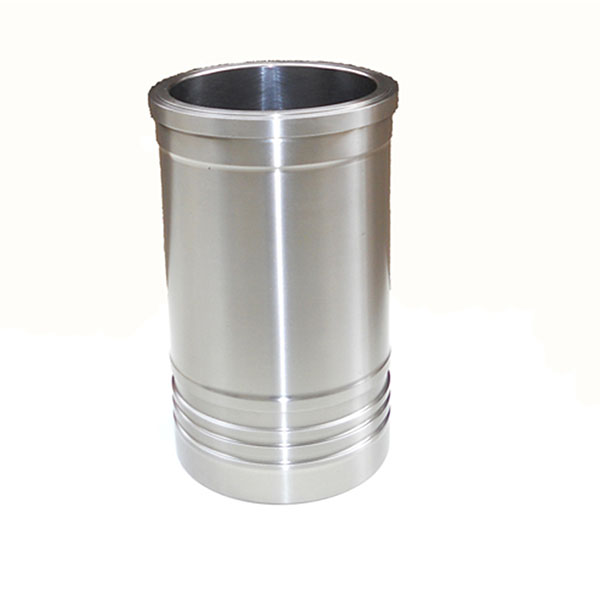

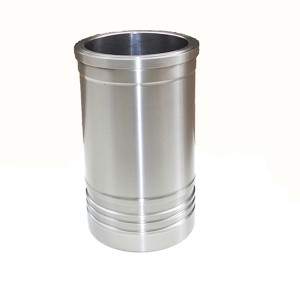

Auto Cylinder Liners

Short Description:

Cylinder liner is a single cylindrical part, divided into wet type and dry type. The thickness of wet cylinder liner is generally 5-7 mm, which is mostly used on diesel engines; Dry cylinder liners generally have a wall thickness of 2 to 4 mm, which are mostly used in gasoline engines. The dry cylinder sleeve is in direct contact with the wall surface of the cylinder block, which has the advantage of an integral cylinder block. After the wet cylinder l...

Send email to us

Product Detail

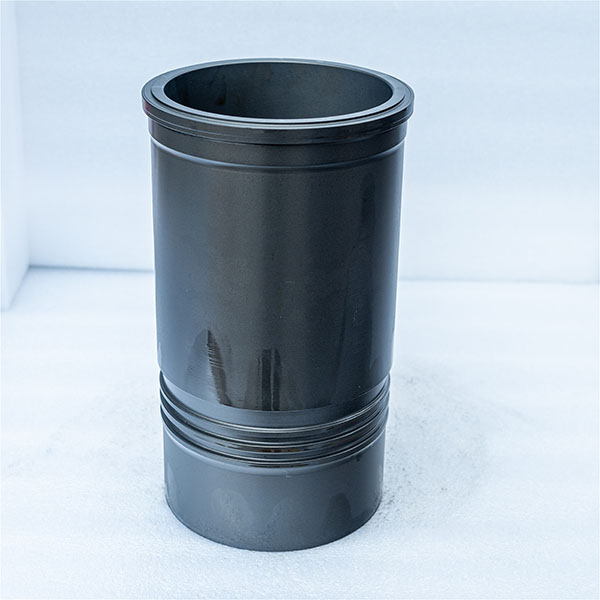

Cylinder liner is a single cylindrical part, divided into wet type and dry type. The thickness of wet cylinder liner is generally 5-7 mm, which is mostly used on diesel engines;

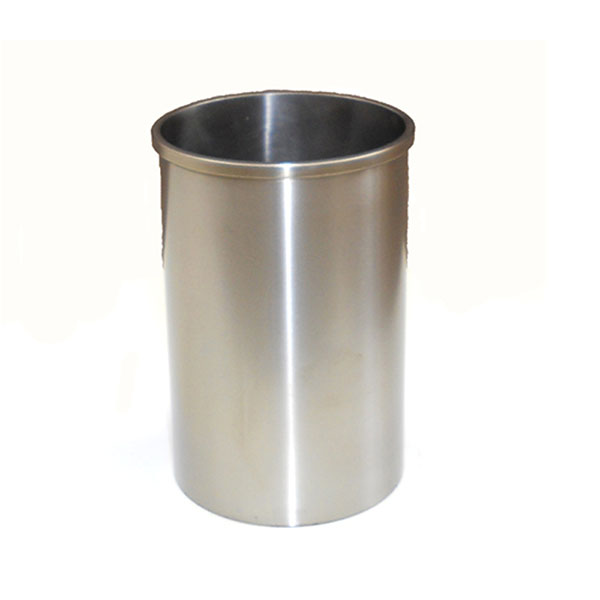

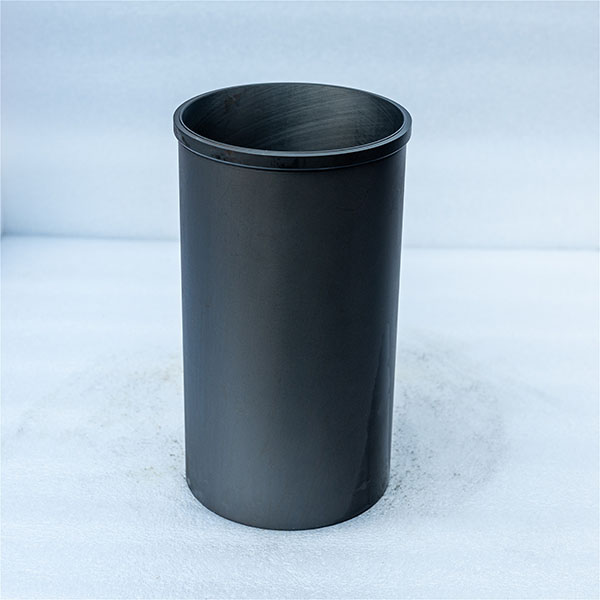

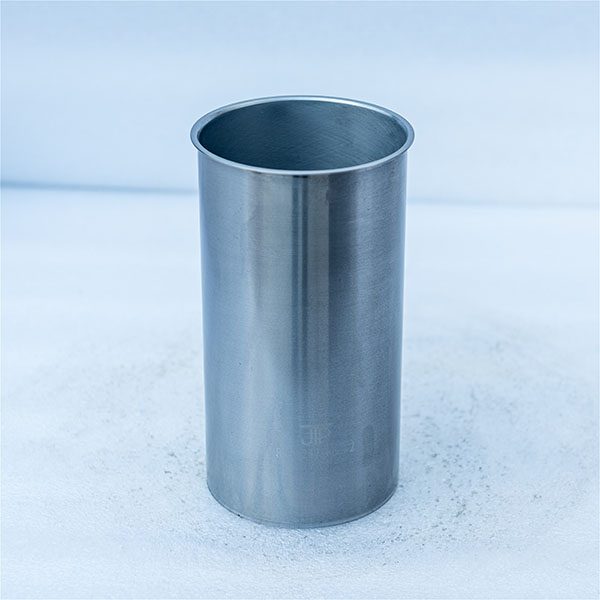

Dry cylinder liners generally have a wall thickness of 2 to 4 mm, which are mostly used in gasoline engines. The dry cylinder sleeve is in direct contact with the wall surface of the cylinder block, which has the advantage of an integral cylinder block.
After the wet cylinder liner is installed in the cylinder block, its outer wall directly contacts the cooling water, which has good heat dissipation, uniform cooling and easy processing. The disadvantage is that the strength and rigidity are not as good as dry cylinder liners, and water leakage is prone to occur.
When the geometric shape and size of the cylinder liner are worn out, cracks, severe strains, or water leakage in the wet cylinder liner water blocking ring, the cylinder liner needs to be removed and replaced.
There are no special technical requirements when disassembling the cylinder liner, so it is easy to pull it out with a cylinder pulling device. If there is no special tool, you can use a hand hammer to knock out the wooden block from the crankcase. The timing of the cylinder set has high technical requirements. Poor assembly will cause water and air leakage in the cylinder liner, which will affect the operation of the engine.

TYPE	Engine Model	OEM Ref.	No.Cyl	CYL DIAMETER	TOTAL LENGTH	FOR REFERENCE
MITSUBISHI	4DQ5	30607-50301	4	83.0(SF)84.0(FF)	162
MITSUBISHI	4D55/4D56	MD050430MD103648~9	4	90.1(SF)91.1(FF)	164.5
MITSUBISHI	4D55(N)	21131-42000	4	90.0(SF)	167
MITSUBISHI	4DR5/6DR5	31607-0220231607-02101~2	4/6	91.0(SF)92.0(FF)	176
MITSUBISHI	S4S/S6S		4/6	93.0(SF)	190
MITSUBISHI	S4E1	34307-00301		93.0(SF)	168.5
MITSUBISHI	4M40T		4	94.0(SF)	160
MITSUBISHI	4M40		4	95.0(FF)	186
MITSUBISHI	4DR7		4	94.0(SF)95.0(FF)	186
MITSUBISHI	S4E2	34307-05400		97.0(SF)	168.5
MITSUBISHI	4D30	ME011513	4	99.0(SF)100.0(FF)	196.5
MITSUBISHI	4D31	ME011604~6	4	99.0(SF)100.0(FF)	191.5
MITSUBISHI	4D31T	21131-41200		99.0(SF)	192
MITSUBISHI	S4K/S6K	34307-00501	4/6	101.0(SF)102.0(FF)	195
MITSUBISHI	4D32/4D34	ME012900ME013366~7	4	103.0(SF)104.0(FF)	197.5
MITSUBISHI	4D32T	21131-41300	4	103.0(SF)	192
MITSUBISHI	4D32(N)	ME031502~4	4	103.0(SF)104.0(FF)	192
MITSUBISHI	4D33	ME013333	4	107.0(SF)108.0(FF)	197
MITSUBISHI	6D15-3AT	ME071090	6	113.0(FF)	206	PF
MITSUBISHI	4D35	ME031656	4	116.0(FF)	200
MITSUBISHI	6D16	ME071224	6	118.0(FF)	204	PF
MITSUBISHI	6D16(new)	ME041105~7	6	118.0(FF)	206	PF
MITSUBISHI	6D17		6	118.0(FF)	209
MITSUBISHI	6D40	ME120028	6	135.0(FF)	261

MITSUBISHI	6DS3	ME021841	6	95	201.2
MITSUBISHI	6DS7	ME021843~4	6	98	201.2
MITSUBISHI	6DS7(new) 6DS70C	ME029187	6	98	206.2

TYPE	Engine Model	OEM Ref.	No.Cyl	CYL DIAMETER	TOTAL LENGTH	FOR REFERENCE
MITSUBISHI	6D10	ME031502~4	6	105	206
MITSUBISHI	6D11	ME031505~7	6	105	228.3
MITSUBISHI	6D14	ME031617 ME071178~80	6	110	206
MITSUBISHI	6D14-2AT	ME071198~200	6	110	211
MITSUBISHI	6DB1	30007-62200	6	110	270
MITSUBISHI	6D15	ME071041	6	113	210.5
MITSUBISHI	6D15T	ME071062	6	113	206
MITSUBISHI	6D20	ME051153ME051157~9	6	125	261.3	DC DCP
MITSUBISHI	6D22	ME051217	6	130	261.8
MITSUBISHI	8DC2/4/7	31207-72603~4	8	130	229.3
MITSUBISHI	8DC2/4/7(O)	31207-43401~2	8	130	229.3
MITSUBISHI	8DC8/81/82	ME061036ME062597~9 31207-72104	8	135	229.7	DC DCP
MITSUBISHI	8DC9/91	ME062602~4	8	135	259.7	DC DCP
MITSUBISHI	8DC91A	31294-72800	8	135	260
MITSUBISHI	S6B	36207-12100	6	135	268.5	PF
MITSUBISHI	8DC10	ME062783	8	138	259.7
MITSUBISHI	8DC11	ME060439-41	8	142	257.7	DC DCP
MITSUBISHI	8DC11A	7000AB	8	142	260
MITSUBISHI	8M20	ME161018	8	146	258
MITSUBISHI	8M21	ME352200	8	150	258
MITSUBISHI	8M22		8	142	257

ISUZU	4FB1		4	83.0(SF)	168
ISUZU	4FD1		4	88.0(FF)	175
ISUZU	4FG1		4	89.0(FF)	150

ISUZU	C190	9-11261-224-1	4	86.0(FF)	163	CHROMED
ISUZU	C240	9-11261-230-1	4	86.0(FF)	178	CHROMED
ISUZU	C223	5-11261-015-2	4	88.0(FF)	163	CHROMED
ISUZU	4JA1	8-94462-130-0	4	93.0(FF)	156	CHROMED
ISUZU	4JB1	8-94247-861-2	4	93.0(FF)	181	CHROMED
ISUZU	4BA1	9-11261-802-2	4	98.0(FF)	180.5	CHROMED
ISUZU	D500	9-11261-257-0	6	98.0(FF)	206.5	CHROMED

TYPE	Engine Model	OEM Ref.	No.Cyl	CYL DIAMETER	TOTAL LENGTH	FOR REFERENCE
MITSUBISHI	6D10	ME031502~4	6	105	206
MITSUBISHI	6D11	ME031505~7	6	105	228.3
MITSUBISHI	6D14	ME031617 ME071178~80	6	110	206
MITSUBISHI	6D14-2AT	ME071198~200	6	110	211
MITSUBISHI	6DB1	30007-62200	6	110	270
MITSUBISHI	6D15	ME071041	6	113	210.5
MITSUBISHI	6D15T	ME071062	6	113	206
MITSUBISHI	6D20	ME051153ME051157~9	6	125	261.3	DC DCP
MITSUBISHI	6D22	ME051217	6	130	261.8
MITSUBISHI	8DC2/4/7	31207-72603~4	8	130	229.3
MITSUBISHI	8DC2/4/7(O)	31207-43401~2	8	130	229.3
MITSUBISHI	8DC8/81/82	ME061036ME062597~9 31207-72104	8	135	229.7	DC DCP
MITSUBISHI	8DC9/91	ME062602~4	8	135	259.7	DC DCP
MITSUBISHI	8DC91A	31294-72800	8	135	260
MITSUBISHI	S6B	36207-12100	6	135	268.5	PF
MITSUBISHI	8DC10	ME062783	8	138	259.7
MITSUBISHI	8DC11	ME060439-41	8	142	257.7	DC DCP
MITSUBISHI	8DC11A	7000AB	8	142	260
MITSUBISHI	8M20	ME161018	8	146	258
MITSUBISHI	8M21	ME352200	8	150	258
MITSUBISHI	8M22		8	142	257

ISUZU	4FB1		4	83.0(SF)	168
ISUZU	4FD1		4	88.0(FF)	175
ISUZU	4FG1		4	89.0(FF)	150

ISUZU	C190	9-11261-224-1	4	86.0(FF)	163	CHROMED
ISUZU	C240	9-11261-230-1	4	86.0(FF)	178	CHROMED
ISUZU	C223	5-11261-015-2	4	88.0(FF)	163	CHROMED
ISUZU	4JA1	8-94462-130-0	4	93.0(FF)	156	CHROMED
ISUZU	4JB1	8-94247-861-2	4	93.0(FF)	181	CHROMED
ISUZU	4BA1	9-11261-802-2	4	98.0(FF)	180.5	CHROMED
ISUZU	D500	9-11261-257-0	6	98.0(FF)	206.5	CHROMED

TYPE	Engine Model	OEM Ref.	No.Cyl	CYL DIAMETER	TOTAL LENGTH	FOR REFERENCE
HINO	EH300	11467-1020	6	108.0(FF)	204
HINO	WO4D/EWO6D/E	11467-1761/17711781/1791	4/6	104.0(FF)	201	PF
HINO	HO6C(T)EH500	11467-1591/16011611/1621	6	108.0(FF)	204	PF
HINO	EH700 HO7C/HO7D	11467-1200.1210 1220.1230	6	110.0(FF)	204	PF
HINO	J08C	11467-2611	6	113.0(SF)114.0(FF)	203.2	PF
HINO	EP100	11467-173011467-174011467-1750	6	120.0(FF)	236	PF
HINO	P11C	11467-E0020	6	122.0(FF)	229	With small steps
HINO	P11CT	11467-2710	6	122.0(FF)	228	Without small steps
HINO	EM100	11467-166111467-167111467-2280 /2290 / 2300	6	124.0(FF)	236	PF
HINO	F20C	11467-166111467-167111467-2280 /2290 / 2300	8	146.0(FF)	244.5	Φ152
HINO	F20C	11467-2680 /2690 / 2700	8	146.0(FF)	244.5	Φ154
HINO	V26C	11467-3030A	10	150.0(FF)	244.5

HINO	DM100	11467-1440	6	90	199
HINO	DQ100	11467-1480	6	92	199
HINO	EC100	11467-1130	6	97	206
HINO	DS70/DS90	11467-1280	6	105	261
HINO	DS50 DS60/DS80	11467-1550	6	110	266
HINO	EL100	11467-1240	6	116	222.5
HINO	DK10(new)	11467-1380	6	120	292
HINO	EB300EB400	11467-1180	6	120	288
HINO	ED100ER200	11467-1370	6	128	291
HINO	EF300/EF350	11467-1071	8	132	248
HINO	EF500	11467-1101	8	135	248
HINO	EF550	11467-1690	8	135	248
HINO	K13C	11467-2090	6	135	267	DC
HINO	EK100 EK200/K13D	11467-191011467-1960	6	137	267	DC
