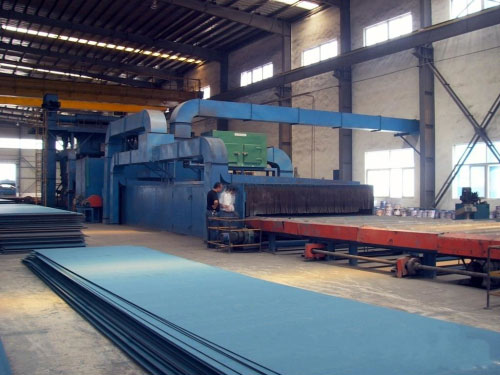

 Steel plate shot blasting machine is a multi-functional steel pretreatment line for cleaning welded structural parts, H steel, steel, grid and steel plate.

Structure

The main functional components of the machine are the cleaning room, the indoor conveying roller and the feeding and conveying roller, the blasting machine, the projectile circulation system (including the hoist, the separator, the vertical and horizontal screw conveyor, the projectile recovery mechanism and the pill pipe). Institution, dust removal, electrical control and other components

working principle

This machine is a high-performance shot blasting equipment for continuous feeding of roller conveyors. When the steel structural parts or steel are sent into the projectile area of ​​the cleaning machine room by the electrically controlled adjustable speed conveyor roller during the cleaning process, the whole body is covered. It is struck and rubbed by strong intensive projectiles from different coordinate orientations, so that the scale, rust layer and dirt on it are quickly detached. The surface of the steel material has a smooth surface with a certain roughness, and the loading and unloading of the inlet and outlet rollers on both sides of the outdoor cleaning room. Workpiece. The projectile and rust dust falling on the steel material are purged by the purging device, and the sprinkled powder mixture is transported from the recovery screw to the chamber funnel, and the vertical and horizontal screw conveyor is collected in the lower part of the hoist and then lifted to the upper part of the machine. In the device, the separated pure projectile falls into the separator hopper for use in shot blasting. Dust generated in the shot blasting is sent to the dust removal system by the exhaust pipe, and the cleaned air is discharged into the atmosphere, and the particulate dust is captured and collected.
